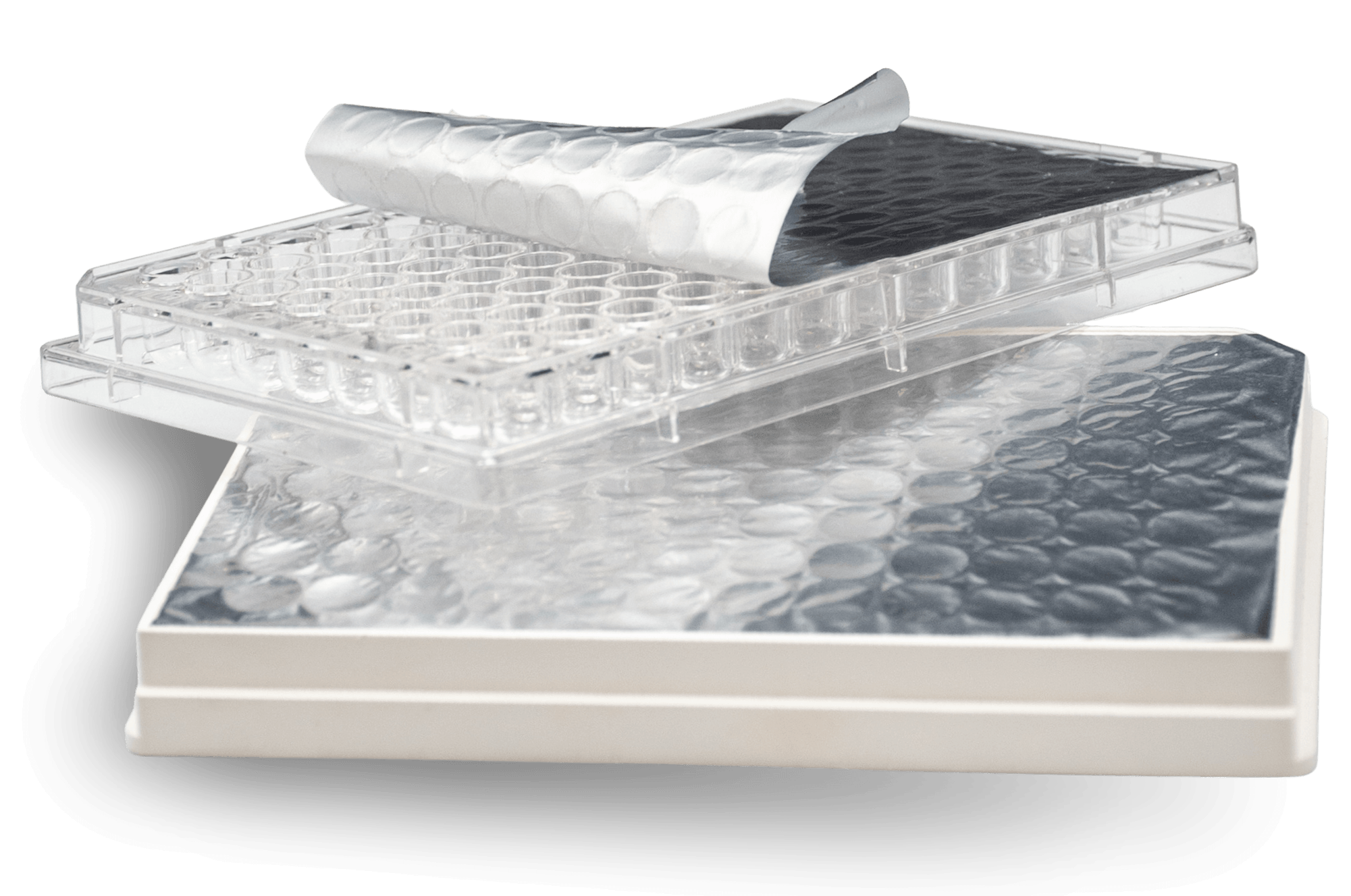

AdvanceSeal™ 3000

Peelable Foil Heat Seal

Application: PCR, Long-term compound storage, Light sensitive assays, Robotics
Temperature Range: -80°C to +105°C

Catalog #	Description:	Quantity:
AS-3000P	AdvanceSeal Heat Seal Peelable Foil. Roll Format. 77.5mm x 610m	1 Roll
AS-3000L	AdvanceSeal Heat Seal Peelable Foil. Roll Format. 115mm x 500m	1 Roll

Features & Benefits

Peelable foil seal
Removes from plates without tearing
For use with Kbiosystems, Azenta and Agilent PlateLoc Heat Sealers
Compatible with: polypropylene, dual component (polycarbonate/polypropylene), and polystyrene plates
Excellent chemical resistance
Heat and cold resistant, effective at temperatures from -80°C to +105°C
Certified free of detectable levels of DNase, RNase, and Human DNA contamination (PCR Certified)

Recommended Sealing Parameters

Plate Type:	Time:	Temperature:
Polypropylene	3 seconds	155°C-165°C
Dual Component PCR Plates (Polycarbonate/Polypropylene)	3 seconds	155°C-165°C
Polystyrene	2 seconds	140°C

Sealing parameters should be optimized based on plate type to obtain a secure seal.
