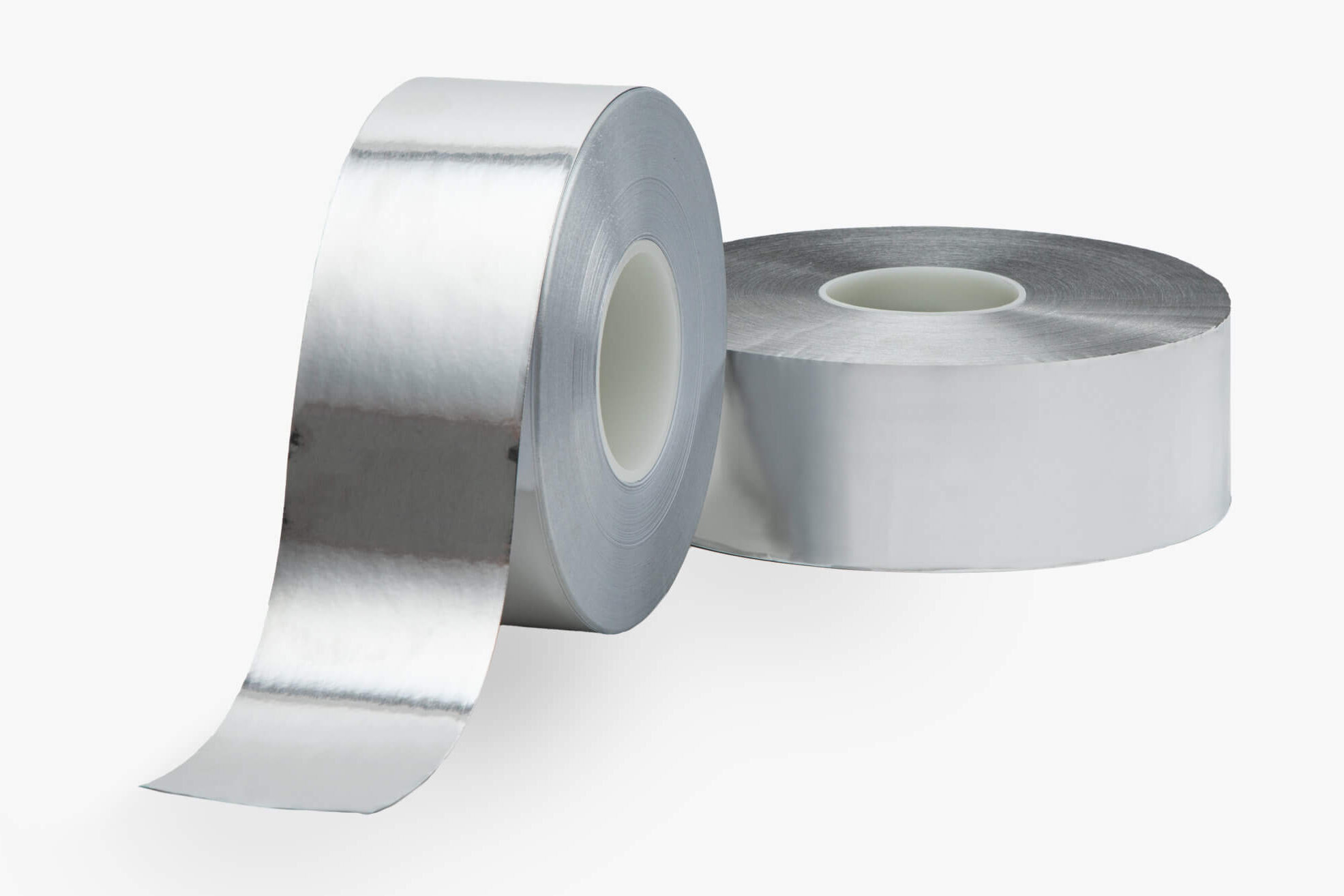

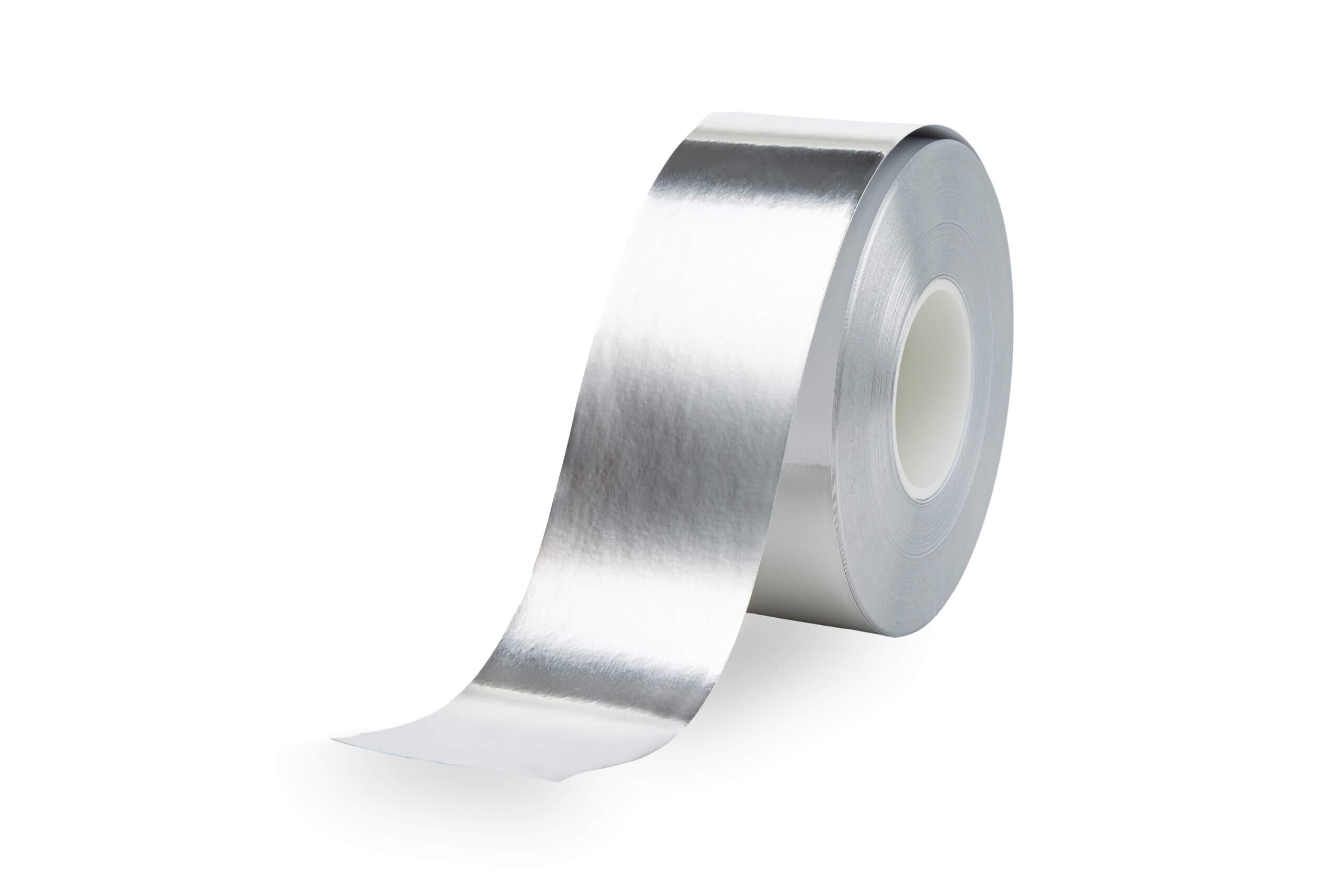

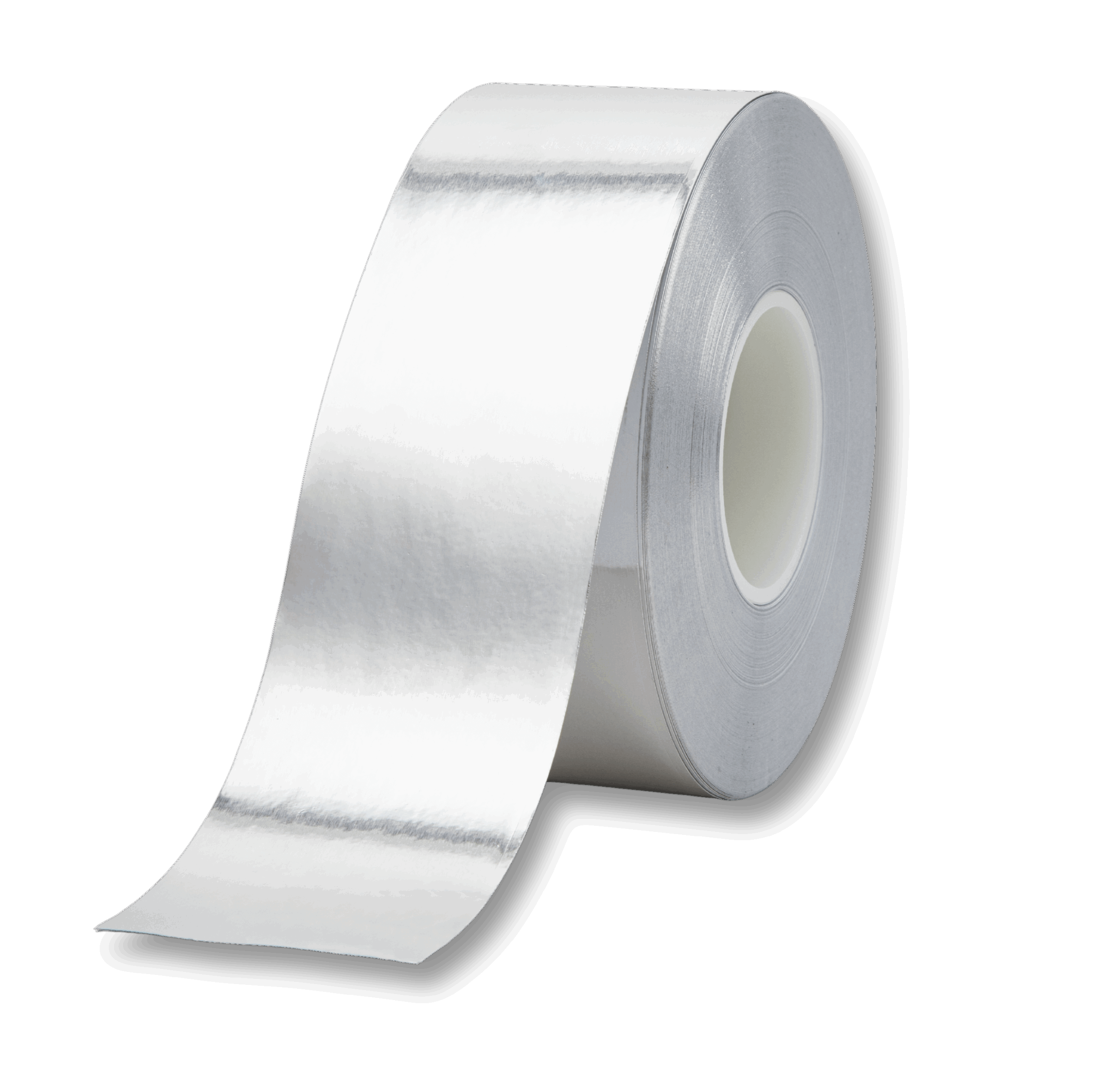

AdvanceSeal™ Heat Seal Pierceable Foil

Pierceable heat seal for use with automated roll format applicators

Product Info

Application: PCR, Sample storage and transport, Long-term storage, High throughput, Automation, Anaerobic conditions, and Re-sealing pierced plates
Temperature Range: -80°C to +105°C

Catalog #	Description:	Quantity:
HS-FPR-78X610	AdvanceSeal Heat Seal Pierceable Foil. Roll Format. 77.5mm x 610m	1 Roll
HS-FPR-115X500	AdvanceSeal Heat Seal Pierceable Foil. Roll Format. 115mm x 500m	1 Roll

Features & Benefits

Hermetically seals plates to protect samples
Highly impermeable to light, gas, and moisture
Non-adhesive based design leaves no residue on pipette tips
Provides a strong microbial barrier
Ideal for small sample volumes
Certified free of detectable levels of RNase, DNase, and Human DNA (PCR Certified)
PCR inhibitor-free
Endotoxin-free
Good chemical resistance (e.g. DMSO)

Recommended Sealing Parameters

Plate Type:	Time:	Temperature:
Polypropylene	2-3 seconds	145°C-160°C
Dual Component PCR Plates (Polycarbonate/Polypropylene)	2-3 seconds	145°C-160°C
COC	2-3 seconds	145°C-160°C
Polystyrene	2-3 seconds	75°C-120°C

Sealing parameters should be optimized based on plate type to obtain a secure seal.

Downloads

AdvanceSeal Heat Seal Pierceable Foil Product Flyer

AdvanceSeal Heat Seal Pierceable Foil Spec Sheet
